FSP1U: 1U Multifunction Fixed Solar Panel
From €1,500

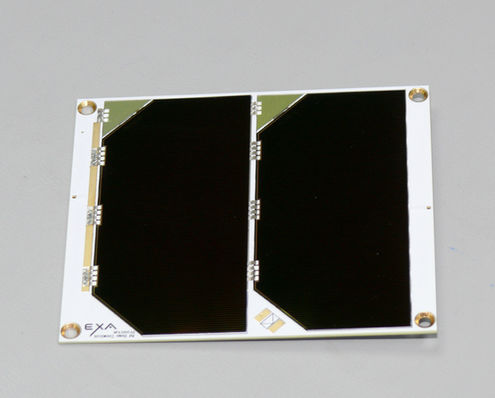

The EXA FSP1U is a 2.5W multifunction solar panel integrating an embedded magnetorquer, sun sensor and temperature sensor into a panel attached to the CubeSat structure, just as any other solar panel.
Availability: 8 weeks
Includes:
-
ICD
-
User Manual
FEATURES
-
2.5W total power using UTJ 80x40 solar cells
-
Bypass and blocking diode integrated
-
MT02 magnetorquer embedded (Optional)
-
Sun sensors and temperature sensors embedded (Optional)
-
Designed for LEO missions and requirements
-
Manufactured according to space standards and custom mission design
-
Functional, performance, thermal bake out and vibration tests provided with documentation.
-
Discounts for complete mission sets
-
Compatible with ISIS and Pumpkin Structures
-
Compliant to CubeSat Standard
-
Compatible with QuadPack and ISIPOD Launch Adapters
DOWNLOADS
PERFORMANCE
-
Supply Voltage: 4.5V to 5.2V @2.5W
-
2A@20V blocking diode integrated
-
Bypass diodes in each cell (x2)
-
Cell Efficiency: >30%
-
(Optional) Embedded Magnetorquers MT02:
-
Working Voltage: From 1.25V to 5.5V
-
Working Current: From 100mAh to 1000 mAh
-
Nominal Magnetic moment: >0.14 Am2
-
Saturation Magnetic moment: >0.48 Am2
-
Linearity: +/- 4% across operating design range
-
Residual moment: <0.0075 Am2
-
Torque: 3.66 µNm @ 3.2 mTesla (1U mass)
-
Angular acceleration: 1.75 Rad/sec-2 (1U mass)
-
B-center = 4.4 Gauss @5V
-
B-corners = 9.5 Gauss @5V
-
Typical resistance: 7.0 to 7.2 ohms @ 25°C
-
Random Vibration: 16g rms
-
-
(Optional) Sun Sensor:
-
Analog, GPIO, 5 to 16V
-
Linear response range from 0.2V to 5V
-
Working current: 50 mA
-
Working FOV: 65 degrees H/V
-
-
(Optional) Temperature sensor:
-
Analog, GPIO, 4 to 12V
-
Linear response range from 0.3V to 1.5V
-
Working current: 80 mA
-
Working temperature: -50C to 125C
-
PROPERTIES
-
Mass: 20 grams
-
Panel Thickness: 1.0 mm
-
Operating Temperature: -80 °C to +130 °C
-
Radiation Tolerance: 4 years minimum in LEO
MATERIALS
-
Panels: FR4-Tg180
-
Cell Material: GaAs UTJ
-
Cell Interconnector: Invar Silver plated
-
Interfaces:
-
Custom choice, normally 4 Molex PicoBlade inline 3 and 2 pin connector with gold plated contacts.
-
PTFE (Teflon) space grade cables, single strand, silver plated copper (AWG26, AWG24).
-
TESTS
All panels are provided with tests reports regarding:
-
Continuity isolation between cells and substrate
-
No cracks warranty
-
Thermal Bake out (10E-7 mbar @ 50C for 24 hours)
-
Full vibration test for Falcon 9, Vega, Electron, Soyuz, Dnepr, and Long March 2D
-
QT and AT is performed on the unit to be shipped
