ULS-6U: Ultra-Lightweight
Structure 6U
€ 6,500
384 gr
THE LIGHTEST 6U STRUCTURE EVER MADE
MODULAR · ADAPTABLE · CONFIGURABLE

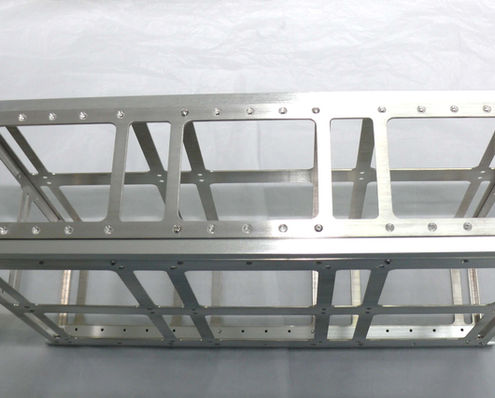

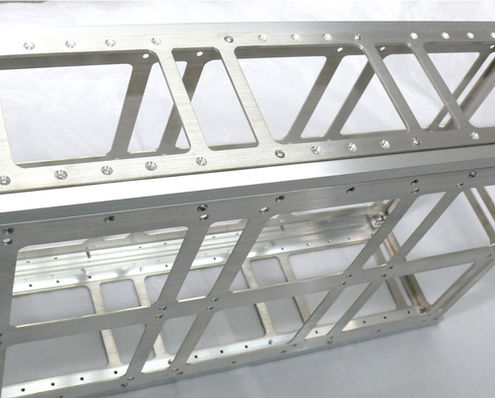

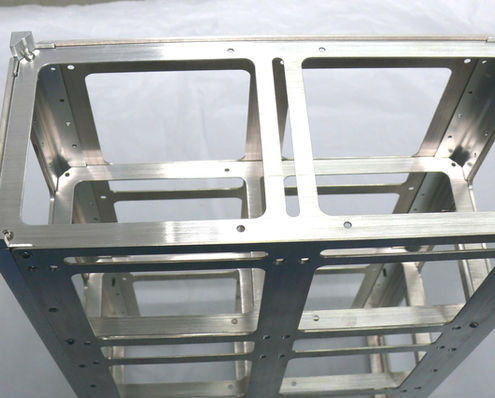

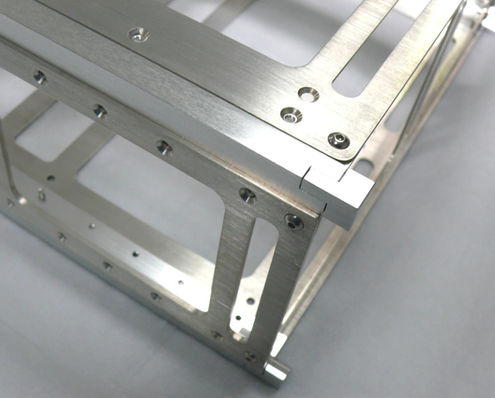

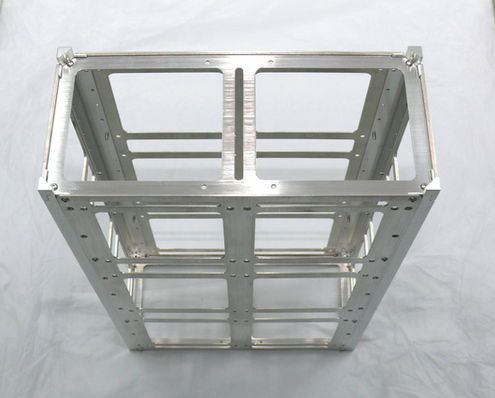

The EXA ULS-6U is the Ultra-Lightweight Structure for 6U CubeSats, made of a special, space-grade TRL-9 alloy and anodized aluminum 6061-T6. Because of this special metallic composition and clever engineering, at the time of writing, it is the lightest such structure in the world at a maximum of 384g. Despite its feather-like weight, the structure is very rigid and sturdy, using the internal components to also reinforce the assembly in a cyclical reinforcement system.
VIEW MORE FEATURES: Data Sheet
FEATURES
-
Customizable configuration to fit tight mass budgets.
-
Customizable exterior panel mounting holes.
-
PC/104 mounting holes for stacks in X, Y and Z directions.
-
Redundant hole pattern for multiple load profiles.
-
Removable exterior panels for ease of access and integration.
-
Designed for LEO to Lunar missions and requirements.
-
Manufactured according to NASA and ESA space standards and materials using NASA STD-6016B
-
Functional, performance, thermal bake out and vibration tests provided with documentation.
-
Compatible and compliant with standard deployers and CubeSat Standard.
DOWNLOADS
Availability: Immediately
Includes:
-
ICD
-
Assy. Screws
PROPERTIES
-
Mass (exact mass depends on configuration):
-
ULS-6U/A: 320.81 grams
-
ULS-6U/B: 353.08 grams
-
ULS-6U/C: 384.09 grams
-
-
Operating Temperature: -180 to +300°C
-
Radiation Tolerance: 4 years minimum in LEO
TESTS
All platforms are provided with tests reports regarding:
